Lighting Product Family Overview

This article describes Savant Lighting Product Families and Lighting Controllers. Use the navigation on the left to access the following documentation for Savant and supported third-party lighting:

• Specification Guides
• Quick Reference Materials
• Installation Documentation
• Provisioning
• Programming procedures

GE Proseo Wireless - Wallbox Dimming

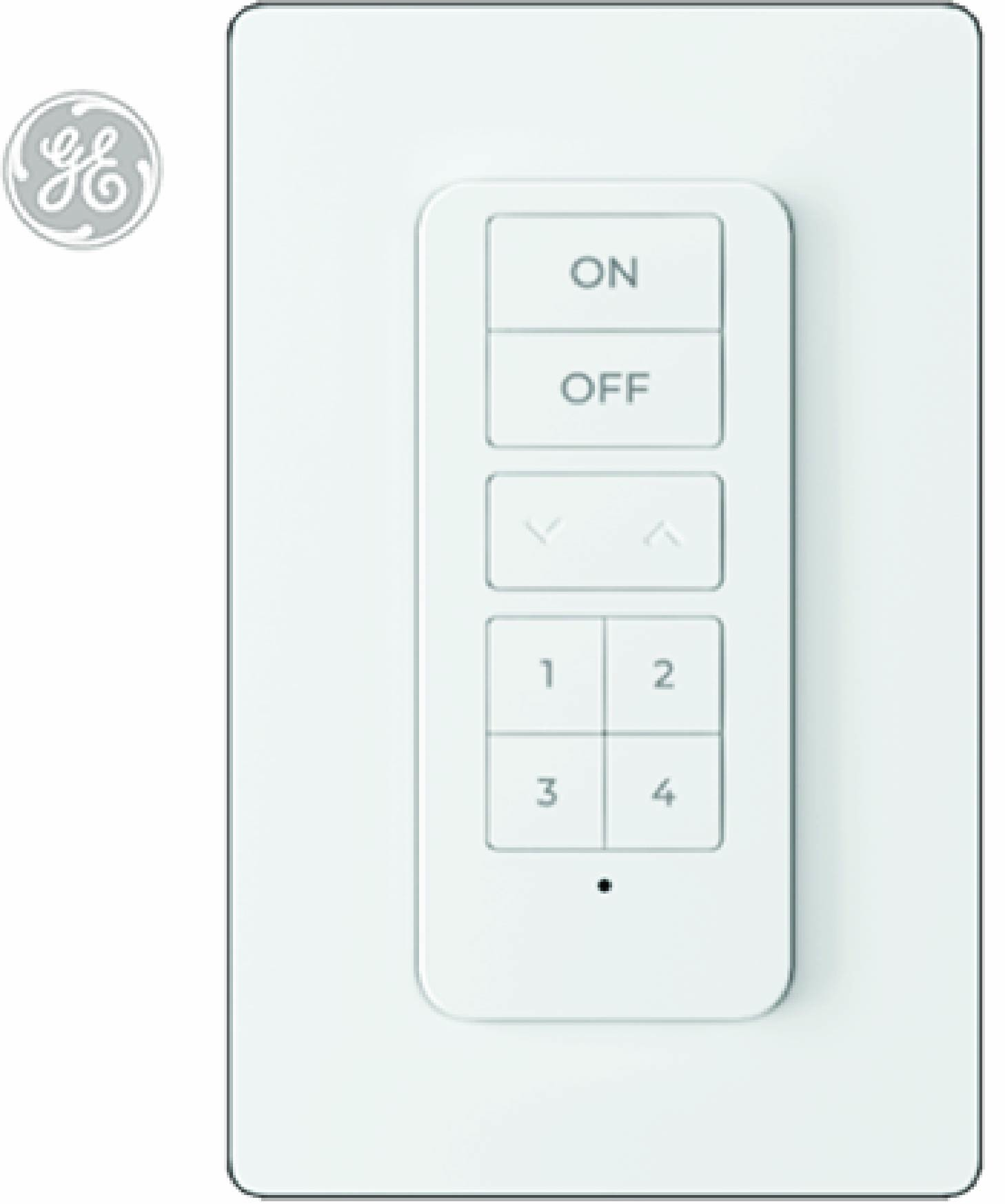

Proseo Flex

GE Proseo Flex is the premiere wallbox lighting series designed for use within a Savant System. useful for Incandescent, Electronic Low Voltage, Dimmable CFL, Dimmable LED. It provides:

Savant App Control - Customize button functionality, including assigning to light dimming, climate control, audio/video settings, shade control, and other services. Keypad Dimmers Contain PIR Lenses - Adjustable sensitivity lens used for room occupancy or vacancy. Automatically deactivates when commands are received or buttons are pressed on the dimmer during the configured idle duration. Keypad Switch Programming or Conversion - Can be programmed similarly to keypad dimmers but are capable of being converted to auxilliary buttons for dimmers. LEDs - Nine programmable LED color options.

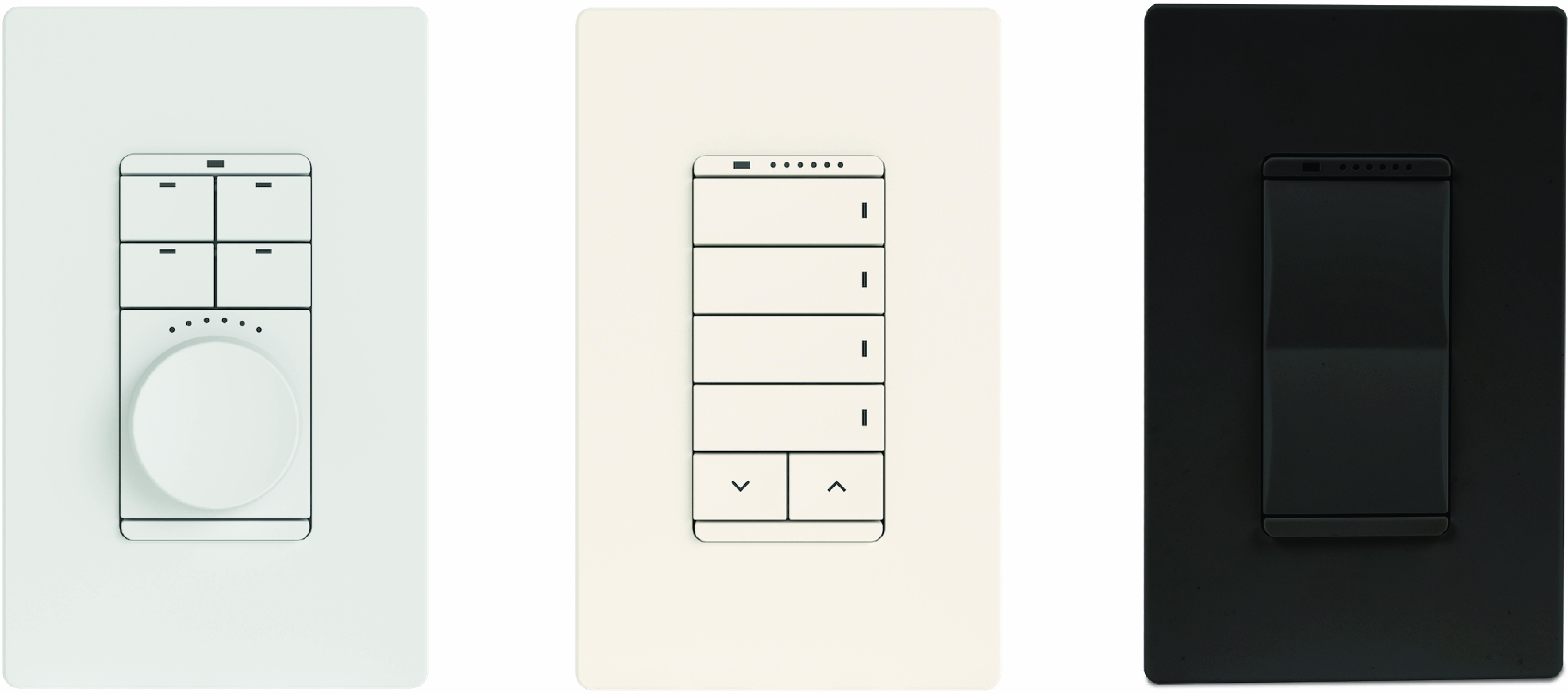

Echo & Metropolitan Sage

GE Proseo Echo & Metropolitan Sage Wallbox provide wallbox dimming solutions for systems requiring wallbox dimming come in Snow White, Light Almond, and Black colors and support:

GE Proseo Connected - Panelized Lighting

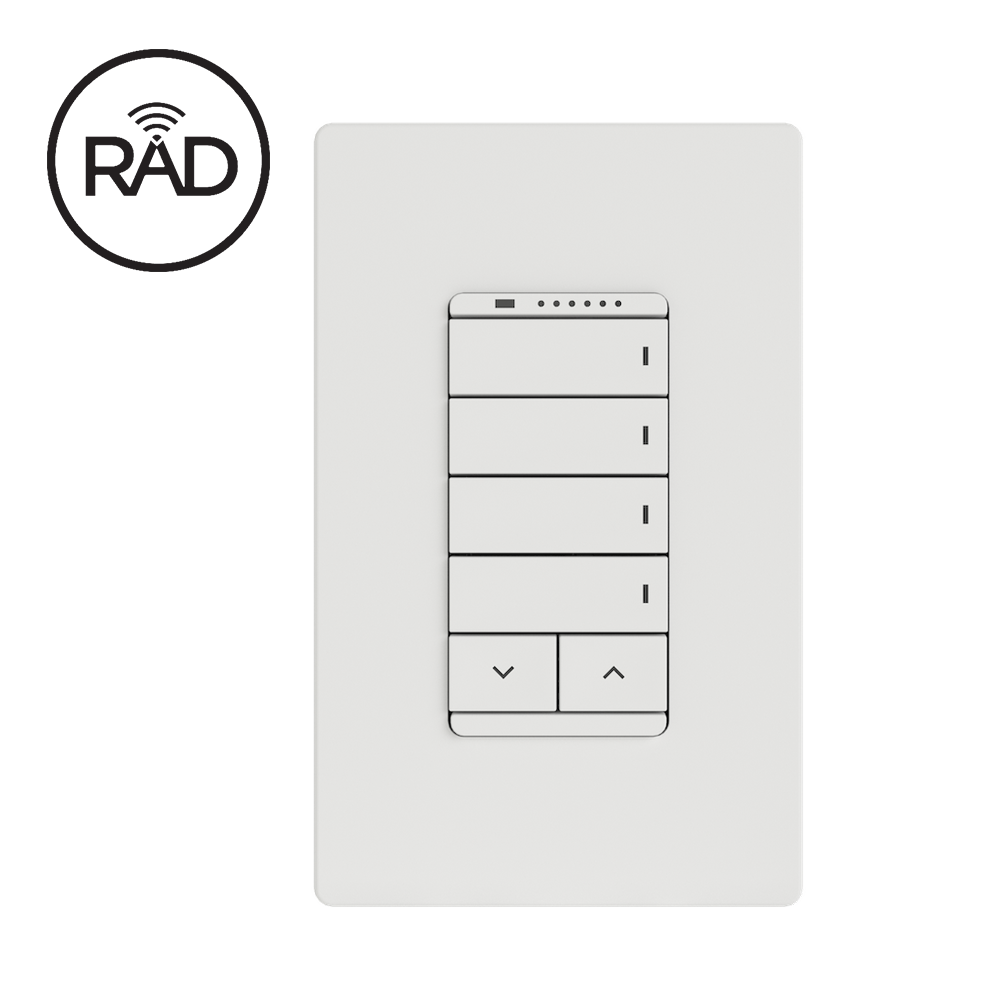

Echo & Metropolitan Low Voltage

Echo & Metropolitan series low voltage dimmers and keypads that fits standard decorator-style wall plates. They are field-configurable to accommodate 3, 4, 5 and 6 button layouts, and feature:

Savant App Control - Customize button functionality, including assigning to light dimming, climate control, audio/video settings, shade control, and other services. Roaming Assisted Discovery (RAD) - Once the RAD primary device is provisioned to the network, the rest of the keypads are provisioned by pressing and holding buttons on other keypads to be onboarded to the wireless network. This makes provisioning keypads faster, and more efficient. Ambient Light Sensor - Detects the level of ambient light in the room and adjusts the brightness on displayed LED lights. Customizable within Lighting & Shade Designer Tool - 8 different layout options, Nine field-configurable LED color options. Flexible Installation Anywhere - Fitting within any standard keypad wall box, it is powered by a Savant Keypad Power and Control Module that provides centralized power and communication for multiple keypads. LEDs - Nine programmable LED color options.

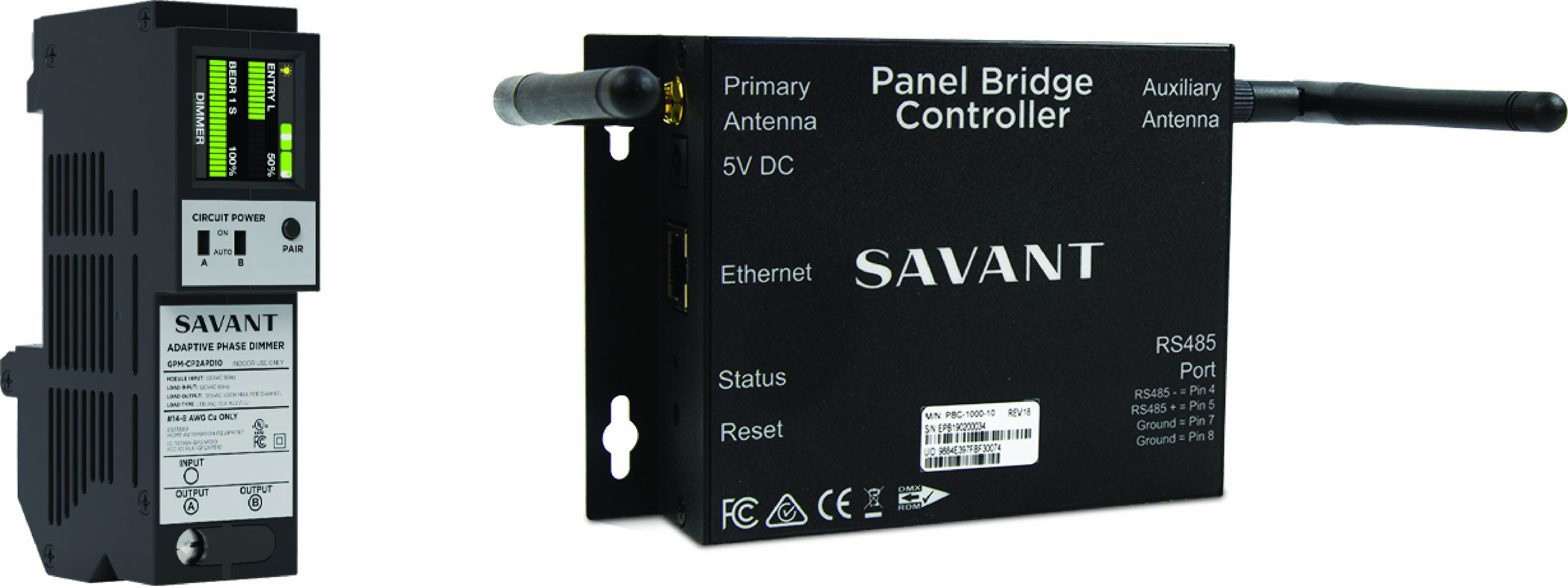

Lighting Modules & Panel Bridge

Lighting Modules are installed into breaker panels similarly to breaker, then wired into a lighting circuit to dim the loads on that circuit. Breaker panels with a Lighting Module are called Lighting Panels. Lighting Panels are The Savant Panel Bridge Controller acts as the primary interface for communication between the Savant Host and Lighting Modules, and both provide:

Easy Installation - Lighting Modules Identical to installing a circuit breaker, while the Panel Bridge only requires power, an internet connection, and line of sight to the Lighting Modules. Savant App Control - Control the dimming of the circuits a Lighting Module is wired to, including adding the load to Scenes, Lighting Scenes, and Light Banks. Module On-Screen Load Monitoring - Reports the total circuit load compared to the maximum supported load of the breaker.

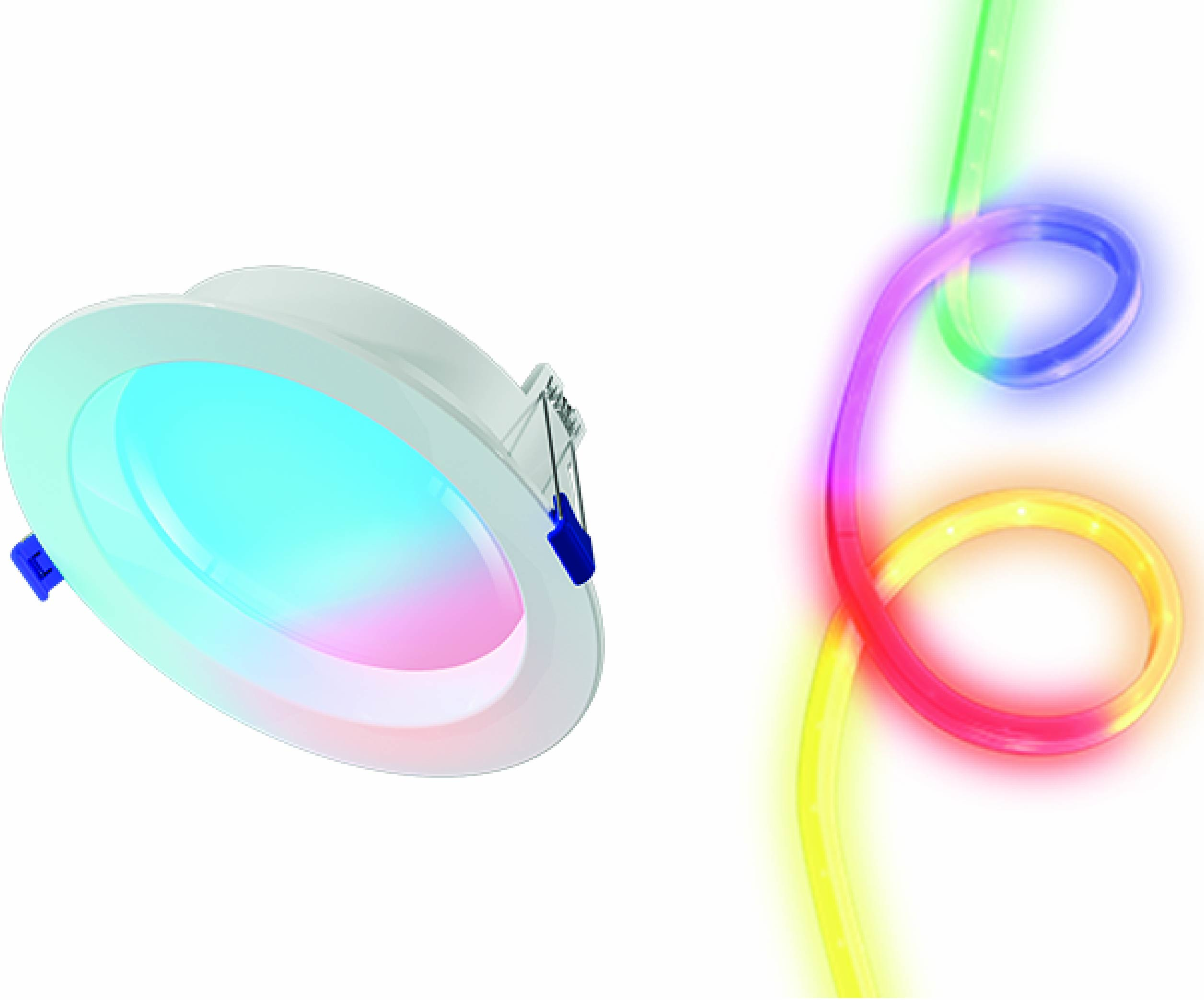

GE Universal

GE Universal Series contains several lighting, each using millions of colors and tunable white spectrum to effortlessly change the aesthetic of any room, at any time, including:

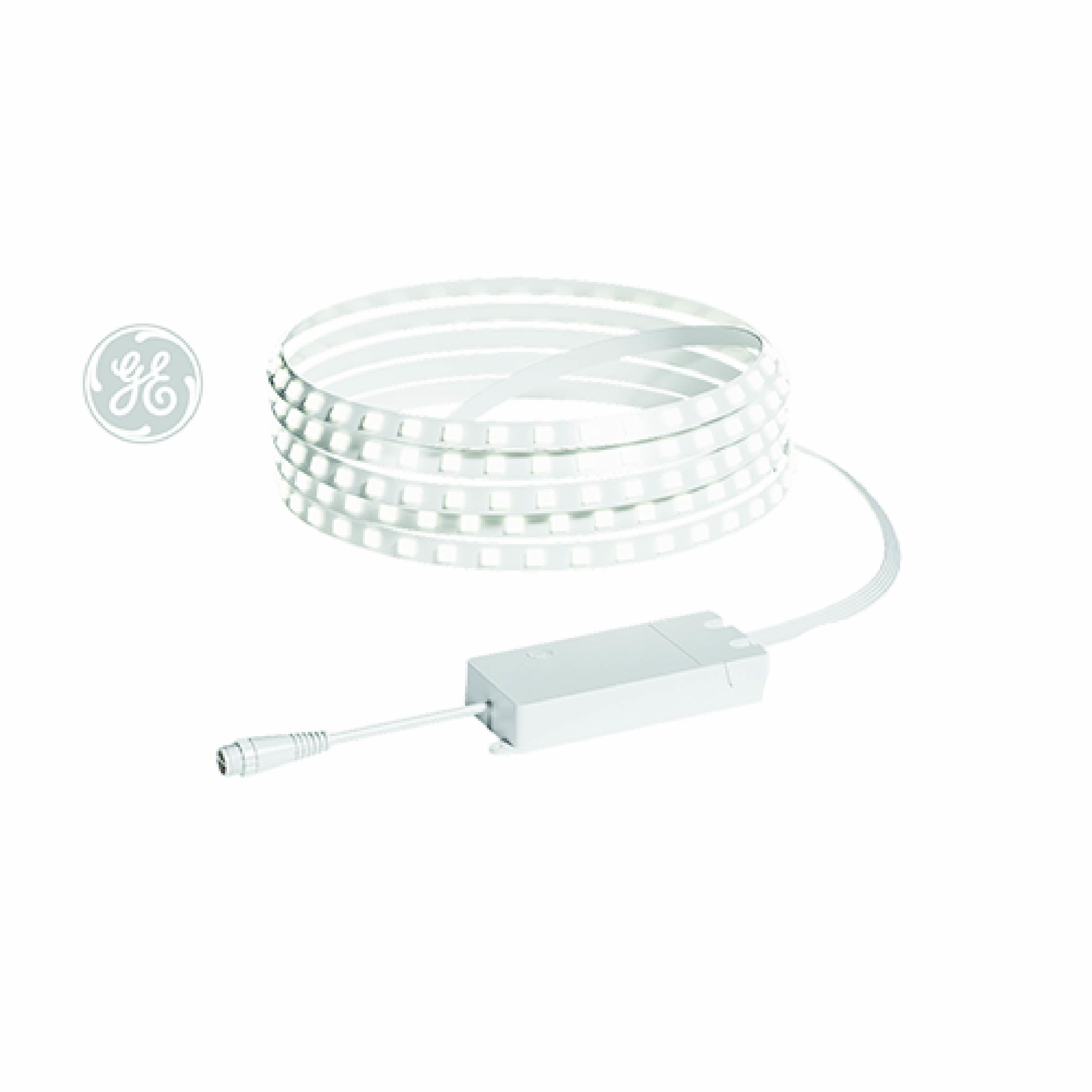

GE Proseo Fixtures

The GE Proseo Fixture series contains lighting strips specifically designed to integrate into Savant smart home systems. It includes:

Savant App Control - Scenes, Daylight Mode, scheduling, and remote access. Light Shows to light up any room and reveal GE Proseo lighting fixture color controllability. Music Sync to provide an instantly in-rhythm demonstration of GE Proseo responsiveness.

Lighting Controllers

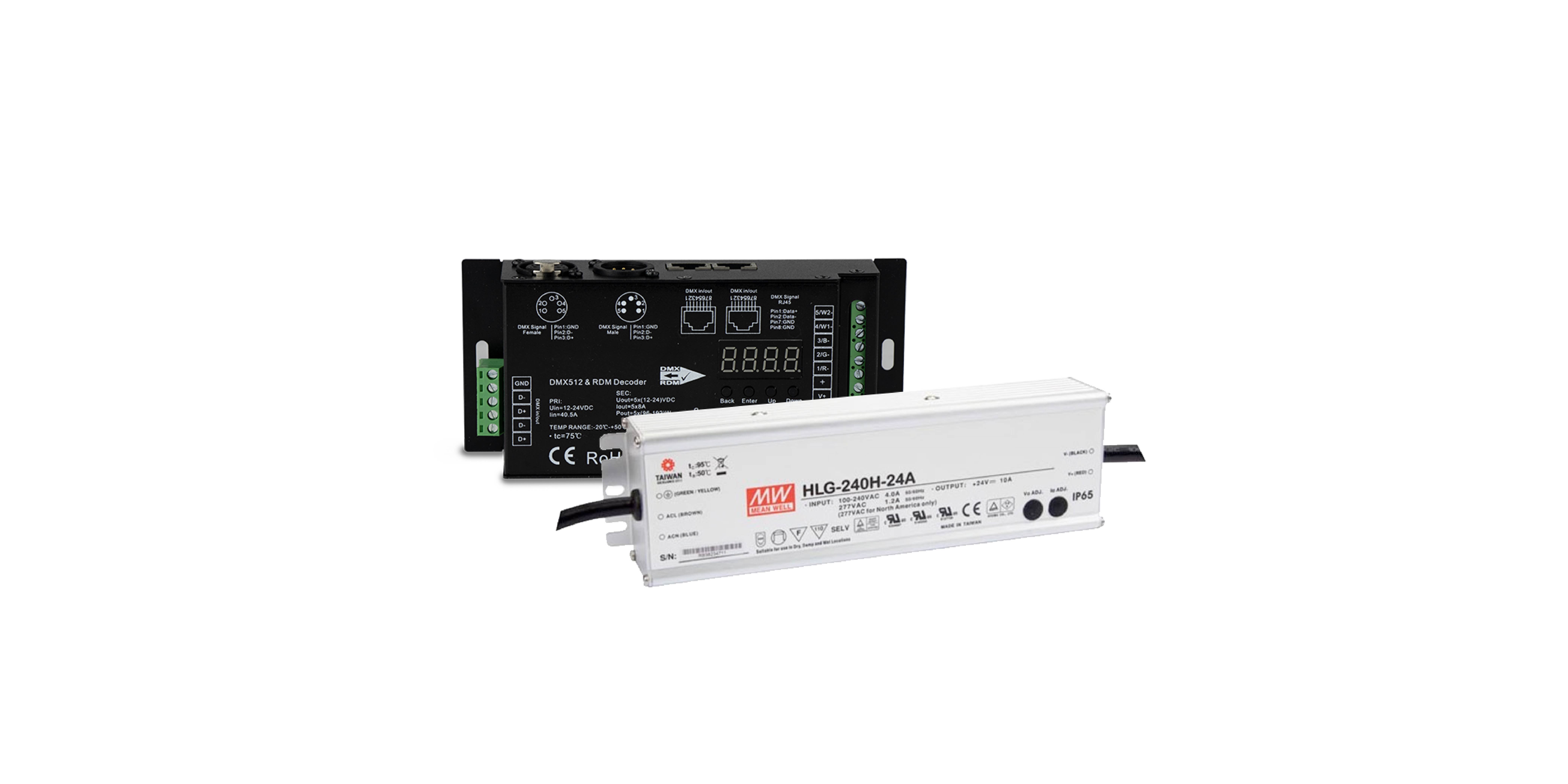

DMX

Drive third party DMX fixtures using a Savant Low Voltage DMX Driver provide power and control.

Savant App Control - Add associated DMX fixtures to Scenes, Daylight Mode, scheduling, and remote access. Lighting Control Convenience - Provides accurate, centralized control over multiple DMX supporting fixtures simultaneously without leaving the Savant app.

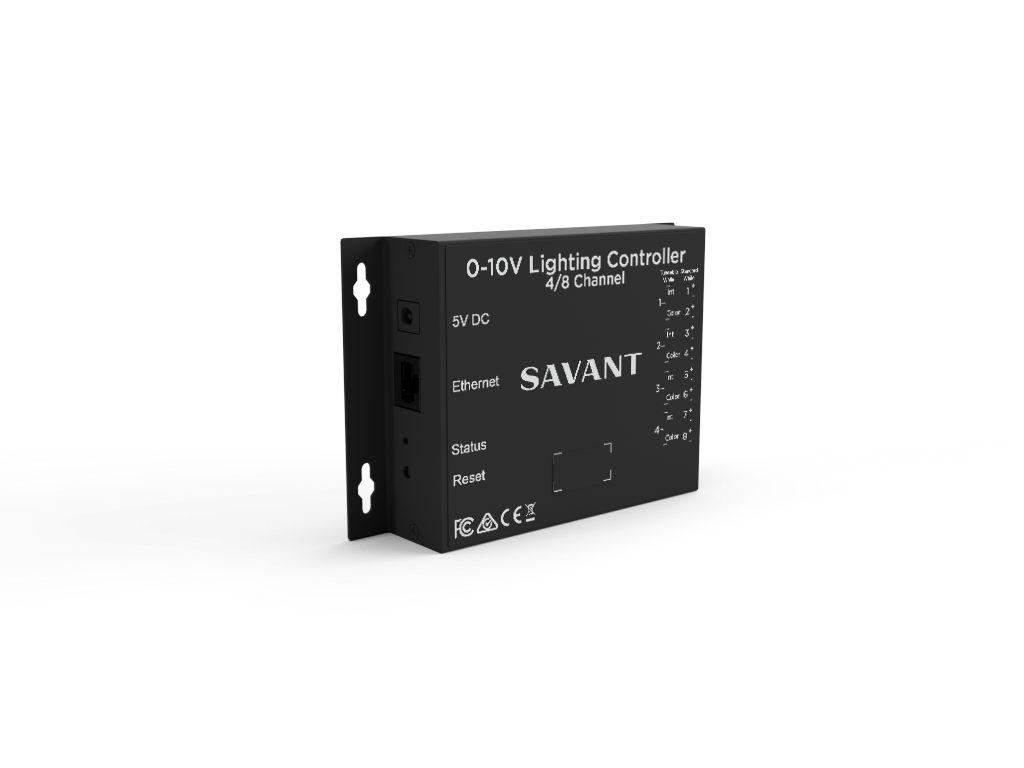

0-10V

The Savant 0-10v controller focuses on responsive control of 0-10V fixtures by the user within the Savant app through a Wired 0-10V Bridge to drive installed 0-10 lights.

Savant App Control - Add associated 0-10V fixtures to Scenes, Daylight Mode, scheduling, and remote access. The low voltage encourages energy savings, flicker-free performance, and extends the lifespan of your fixtures. Pairs perfectly with USAI fixtures, allowing for intensity control and dual output options for Tunable White loads.
